VAUX-COM - Variant Configuration on Simple Modules

NOTE: If you do not already know how to choose the correct model and system, please view the section on selecting the model and year first, then click the back button on your browser to get back here

Variant Configuration is used to tell a module about the options particular to the car it is fitted into.

For example, on a typical engine ECM, the Variant Configuration would tell it whether the car has Cruise control or Air conditioning etc

Start by clicking [Programming]

Screen shot showing VAUX-COM programming button

Then click [Program Variant Configuration]

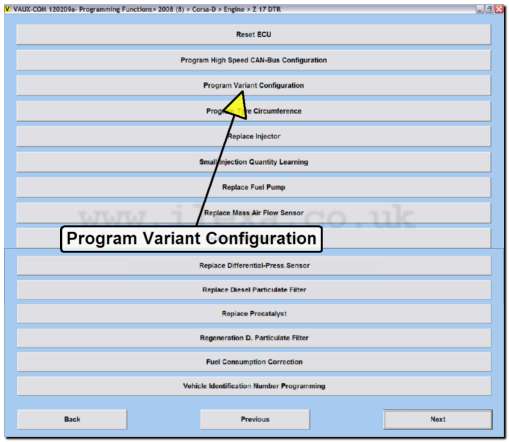

Screen shot showing VAUX-COM programming functions on a Corsa D Z17DTR ECM

Set the options to match the cars specification and click [Program] / [Perform Coding]

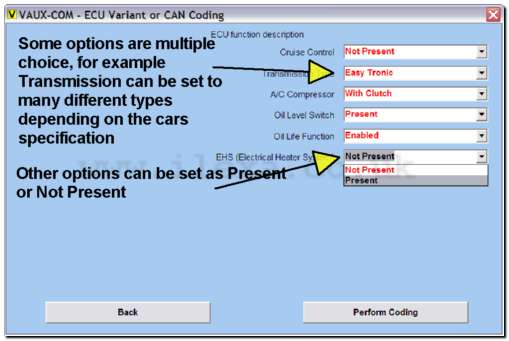

Screen shot showing VAUX-COM Variant Configuration options on a Corsa D Z13DTJ ECM
